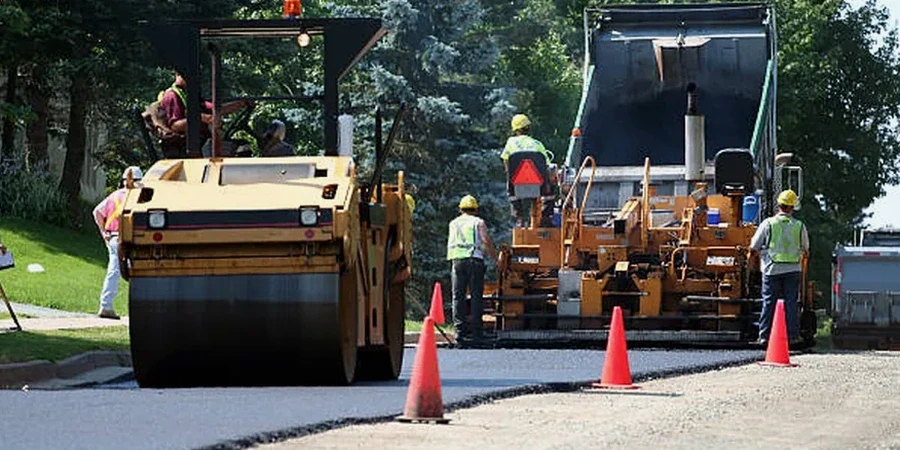

Flexible Pavement Design for Madison's Freeze-Thaw Environment

Madison’s winter freeze-thaw cycles can destroy an asphalt pavement in three seasons if the subgrade isn't accounted for. The city sits on glacial till and lacustrine deposits, with a frost depth reaching 48 inches per WisDOT regional tables. Designing a flexible pavement here means balancing the structural number against a subgrade that loses strength every March. Our approach integrates AASHTO 1993 mechanistic-empirical procedures with local climate data from the Dane County Regional Airport weather station. We model the resilient modulus drop during the spring thaw, when the base course saturates and the subgrade CBR can fall below 3%. For projects near the Yahara chain of lakes, we also account for a perched water table that shortens the drainage path. Before finalizing layer coefficients, it’s common practice to verify in-situ density with the sand cone method on test strips, ensuring compaction meets the 95% modified Proctor target.

A Madison pavement lives or dies by its drainage design—granular base daylighted to a free-draining outlet adds more years than an extra inch of asphalt.

Our service areas

Our approach and scope

Madison’s population surpassed 270,000 in 2023, pushing new subdivisions onto marginal soils west of the terminal moraine. A standard flexible pavement section here rarely follows a generic catalog cross-section. We design layer by layer, using hot-mix asphalt with PG 58-28 binder, a dense-graded crushed aggregate base, and a prepared subgrade compacted to a minimum CBR of 6%. Layer thicknesses typically range from 2 inches of surface course over 3 to 4 inches of binder course, supported by 8 to 12 inches of base aggregate. The design ESALs often fall between 1 and 5 million for arterial connectors serving the Beltline Highway (US 12/18). We input WisDOT FWD deflection data when available, backcalculating layer moduli to calibrate the fatigue and rutting transfer functions. Subgrade stabilization with lime or cement is specified when the plasticity index exceeds 15, a condition found in pockets of the Maquoketa shale residuum. A full pavement design report includes the terminal serviceability index (pt=2.5), reliability level (R=85% for urban collectors), and the overall standard deviation (So=0.45).

Flexible Pavement Design for Madison's Freeze-Thaw Environment — Technical reference — Madison

Local geotechnical context

A common oversight in Madison projects is treating the subbase as a structural layer while neglecting its drainage function. When the granular base does not extend to a free outlet, water trapped in the aggregate expands during the first hard freeze, creating voids that collapse under traffic. We’ve seen this failure mode on collector streets in the Tenney-Lapham neighborhood, where frost boil patterns emerge by late February. Another risk is designing solely from laboratory soaked CBR values without accounting for the 1.5 to 2.0 adjustment factor that Dane County clays require after several freeze-thaw cycles. The Wisconsin Highway Research Program documented that resilient modulus can degrade by 40% between November and April in saturated silty loams. Without a calibrated modulus, the structural number calculation becomes dangerously optimistic. We also flag projects where the pavement edge is within 10 feet of a mature oak—root desiccation can shrink clay subgrades unevenly, producing longitudinal cracking that no asphalt overlay will permanently fix.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering1.org

Reference standards

AASHTO Guide for Design of Pavement Structures (1993), WisDOT Facilities Development Manual (FDM), Chapter 14, ASTM D1883: CBR of Laboratory-Compacted Soils, ASTM D1557: Modified Proctor Compaction, AASHTO T 307: Resilient Modulus of Subgrade Soils, ASTM D2487: Unified Soil Classification System

Reference parameters

Parameter	Typical value
Design method	AASHTO 1993 / WisDOT FDM 14-25
Frost depth (Dane Co.)	48 in (1.22 m)
Asphalt binder grade	PG 58-28 (Superpave)
Base course type	Dense-graded crushed aggregate, CBR ≥ 80%
Subgrade CBR target	≥ 6% after compaction
Design ESAL range	1–5 million (urban arterials)
Reliability (R)	85% for collectors, 95% for interstates
Terminal serviceability (pt)	2.5

Frequently asked questions

How much does a flexible pavement design for a Madison residential street cost?

For a typical residential subdivision street in Madison, a flexible pavement design package runs between US$1,490 and US$5,480. The final cost depends on the length of the roadway, the number of soil borings needed, and whether FWD testing is required to calibrate the model. A simple local road with existing geotechnical data falls on the lower end; a collector with traffic projections and seasonal modulus testing trends toward the upper end.

What is the minimum asphalt thickness for a Madison driveway under WisDOT specs?

While WisDOT does not regulate private driveways, we follow the City of Madison General Engineering Design Standards. For a flexible pavement driveway, we recommend a minimum of 2 inches of HMA surface course over 6 inches of compacted crushed aggregate base. If the subgrade CBR is below 4%, we increase the base thickness to 8 inches and specify a geotextile separator to prevent aggregate contamination.

Why does Madison require a higher structural number than Milwaukee for the same traffic?

Madison’s average winter low is about 5°F colder than Milwaukee’s, and the frost depth is roughly 6 inches deeper. This means the subgrade spends more weeks each year in a weakened, saturated state. The AASHTO 93 design accounts for this by reducing the effective subgrade resilient modulus through a seasonal damage factor. A higher structural number compensates for the cumulative fatigue damage that Madison’s freeze-thaw cycles impose on the asphalt and base layers.
